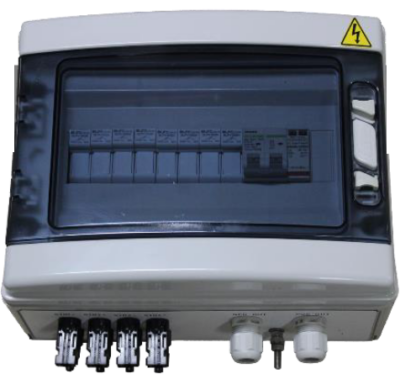

SOL-I-AX-CB4 – String Combiner Box 4 strings MC4 + Surge Protection
R4620,00
SOL-I-AX-CB4 – String Combiner Box 4 strings MC4 + Surge Protection
- Photovoltaic DC protection board-wall mounted. IP65
- Use with voltage DC strings ≤150V DC, Imax 12A per string
- 4 individual PV string. Positive- and negative lines utilises fuses
- DC isolation via 63A DC miniature circuit breaker
- Type 2 DC surge protective device
- PV string connection via MC-4 connectors on string input side
- M20 compression gland for output
- M6 stud connection for earth connection
