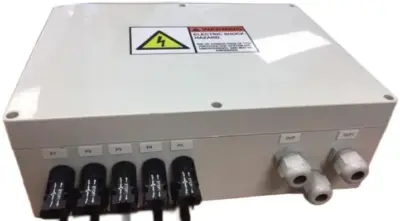

SOL-I-IS-CB42 String Combiner Box 4 strings in 2 Strings out MC4 + Surge Protection INFINISOLAR
R8032,50
SOL-I-IS-CB22 String Combiner Box 4 strings in 2 Strings out MC4 + Surge Protection INFINISOLAR
- Photovoltaic DC protection board – wall mounted. IP65
- Use with voltage DC strings ≤600V DC, Imax 12A per string
- 4 individual strings in 2 individual strings out.
- DC isolation via 16A DC miniature circuit breaker
- Type 1 & 2 DC Surge protective device
- PV string connection via MC-4 connectors on string input side
- M20 compression gland for output
- M6 stud connection for earth connection
